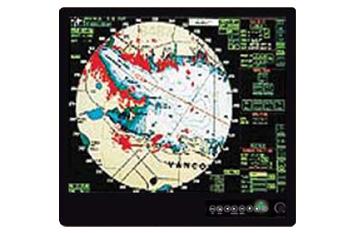

ComNav CS Series LCD Display

Display Type:

LED Backlight / Sunlight Readable

Display Size Options:

12 / 15 / 19
300mm / 380mm / 480mm


DVI / VGA / S-Video


IP 65 Standard

ComNav CS Series LCD Displays are available in 12”, 15” and 19” models for a wide range of marine applications. The sunlight readable white luminescence LED backlit monitors are super bright for increased reliability and long life. The displays suit universal flush or pedestal mounting and are designed for wide angle viewing. CS Series have touchscreen options with anti-glare protective glass.

CS Series LCD Displays are 1400 nit brightness sunlight viewable. This advanced technology gives crystal clear enhanced visibility and optical bonding LCD technology reduces reflection. OSD user control provides user friendly front panel access. The Hyper Dimming knob controls backlight brightness from 0% to 100%. Multi scan function accepts multi-video inputs, DVI, VGA, S-Video and supports Picture In Picture (PIP) function.

CS Series LCD Displays are shock and vibration proof to rugged military specifications Superior thermal channel design runs cooler than standard monitors, with built-in auto heater for extreme cold weather. The displays are IP65 rated waterproof design with marine grade corrosion resistant connectors. The units support 12-36 VDC or 110/240 VAC power supply. ComNav CS Series displays are CE, FCC certified, IEC 60945 and RoHs compliant.

ComNav's marine application computer modules range from chart plotting, autopilot control, radar overlay, engine monitoring, instrumentation, weatherfax, sonar, entertainment (DVD / TV / CD Player), video monitoring, 3D bathymetric charting and communication (fax / e-mail). Additional display stations can be added for monitoring in the pilothouse, flybridge or other TV locations. The user is able to select the appropriate configuration for the vessel application.

ComNav Sunlight Readable LCD / C Series clients include:-

Navy, Coastguard, Law Enforcement, Search & Rescue, professional user information to follow
