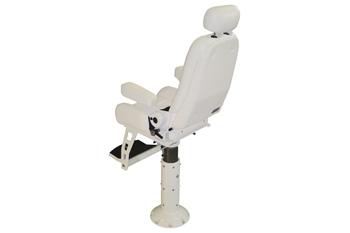

STIDD 500V5 Shock Mitigating Pedestal Seat

Seat Type:

Suspension Pedestal

Seat Dimensions:

Information to follow

Seat Weight:

Information to follow

Applications:

Internal / External

The STIDD Shock Mitigation Pedestal Seat is designed to improve comfort and safety in long duration, open water transits aboard high performance craft. The ergonomic design of the seat can reduce repetitive orthopaedic stress injuries that result from slam loads in sea state 3 to 4.

The shock absorber for the STIDD 500V5 is a heavy duty 70mm (6 5/8”) large diameter shock-absorbing pedestal with 100mm (4”) of nitrogen diaphragm shock travel to soften impacts. The shock absorber is factory adjusted to a pre-compressed height designed to support the weight of the seat plus an average weight occupant. The shock absorber has 10 position adjustable rebound damping for onboard adjustment.

The STIDD Shock Mitigation Pedestal Seat is available in the 500 Standard or 500N Slimline version which includes all the 500 Series features and adjustments. There is a choice of Low or High Back without headrest. The seat can be supplied in 710mm (28”), 760mm (30”), 810mm (32”), 840mm (33”) or 915mm (36”) initial seat height versions to suit a wide range of craft and applications.

Components are non-corrosive and the welded aluminium alloy structure is tough powder coat finished. The upholstery is Hi-Tenacity Polyester with the option of Ultra-Leather. Options include reinforced arms. The CRES Reel Harness System, that provides operator controlled release and retraction of the 4 point harness, is available for the Slimline high back configuration only.

STIDD 500V5 Shock Mitigating Pedestal Seat clients include:-

United States Special Operations Command (USSOCOM), United States Navy (USN), United States Naval Special Warfare (NSW), United States Coast Guard (USCG), United States Army Corps of Engineers (USACE), United States Marines (USMC), Canadian Coast Guard (CCG)

Contact Details:-

Stidd Systems Inc - TEL +1 631 477 2400

220 Carpenter Street, PO Box 87, Greenport, New York 11944 USA
