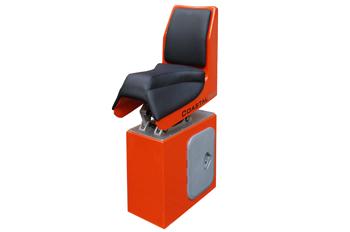

CoastalPro Compact Shock Mitigation Seat has been designed as a lightweight and compact shock mitigation seating solution. The ergonomically contoured GRP seat provides lower lumbar support whilst minimising the risk of entrapment in the event of a capsize.
The CoastalPro Compact offers simple installation and can be retrofitted to most existing jockey seat bases whilst retaining existing under-seat storage. It can also be used on combined straddle seat with helm console designs (jockey consoles).
The adaptive shock mitigation mechanism of the Compact uses dual parallel swing arms and a coil spring shock absorber to offer 130mm (5”) of progressive vertical travel to smooth out impacts. Vector travel is 170mm (7"). The shock absorber has adjustable spring pre-load which enables the CP10XR to be easily adjusted to provide a comfortable ride for a variety of occupant weights and sea conditions up to a maximum seat capacity of 135kgs (300 lbs).
The CoastalPro Compact (CP10XR) is manufactured entirely from marine grade components. Construction materials include marine grade aluminium, 316 stainless steel and GRP / FRP. The Compact weighs 11.5kgs (25 lbs). The base plate hole patterns are compatible with a wide range of existing seat bases and custom base plates are available to order. Options include colour matched upholstery, colour matched GRP, rear grab handles.
Coastal Pro Seat clients include:-
XS-RIBS, Flugga Boats, Sea RIBs, Gemini Marine. Professional user information to follow
